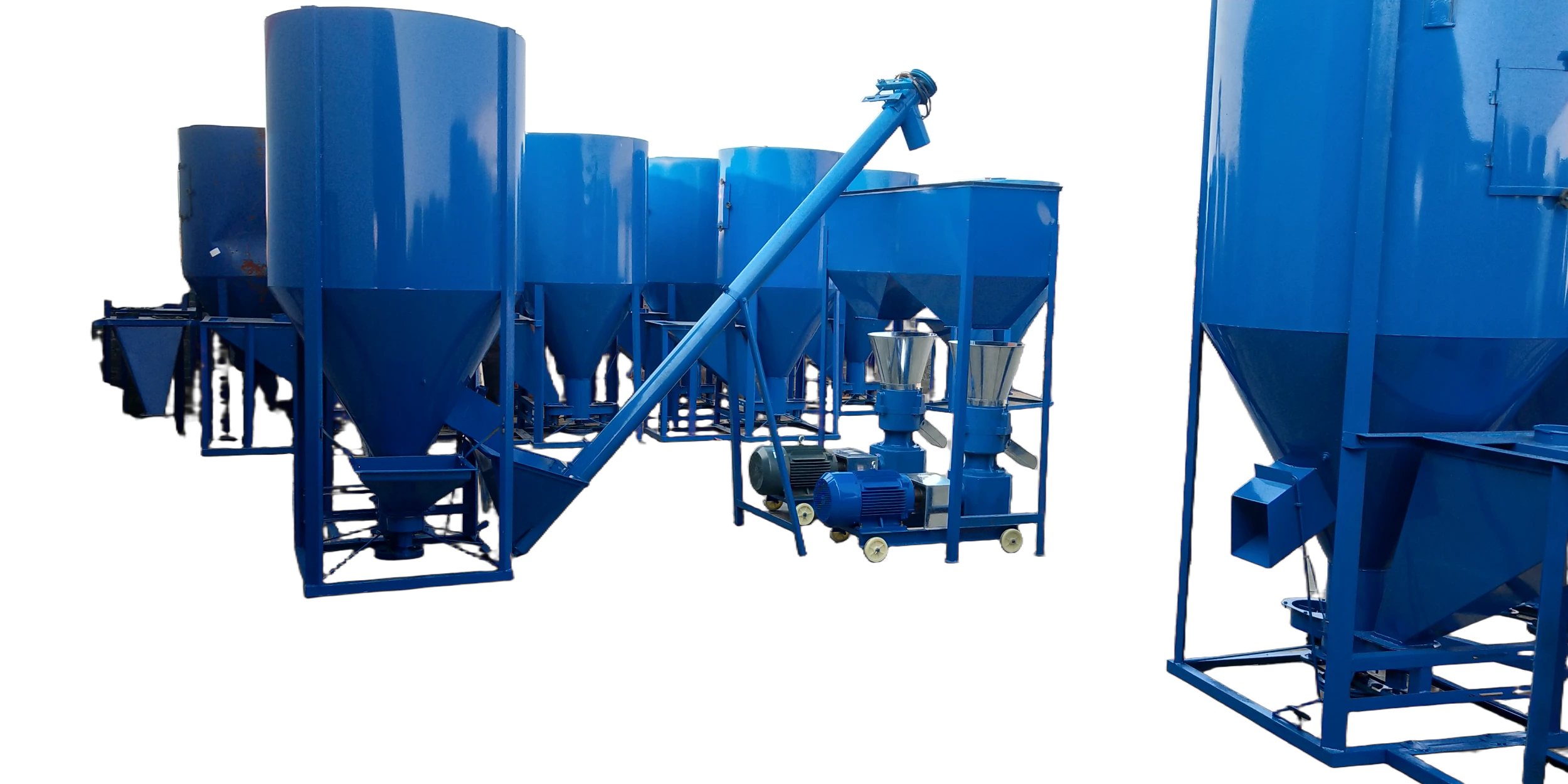

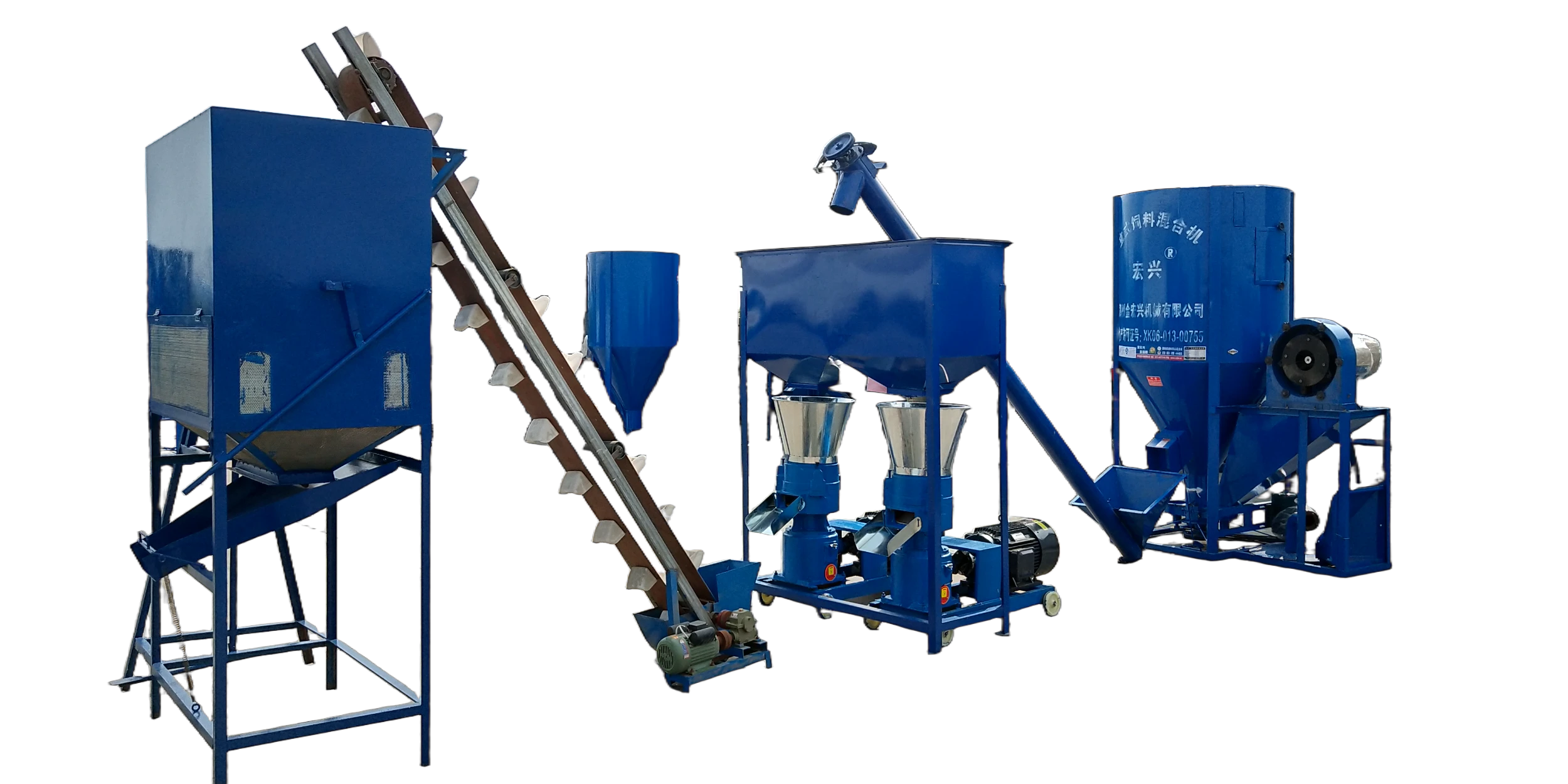

Small Scale Animal Feed Pellet Machine Set

TLP 300 and STLP400 animal feed pellet machine is a small poultry feed production line (600~1000kg/h), which includes system of grinding, mixing, conveying, pelletizing and cooling. The diameter of final feed pellets can be 2~8mm. It is a multifunction poultry feed pellet making machine which is suitable for processing feed pellets for various kinds of poultry, livestock, and animals. Don’t hesitate to inquire for detailed quotaion of this small plant!

Highlights of the Mini Feed Pellet Production Line

• Low Investment: Due to compact structure design, this feed pellet machine set is featured of low requirement on space and workshop conditions.
• Low Installing Cost: The installation of this small feed pellet plant is very easy. All the machines can be used directly after simply connection.
• Low Production Cost: Only 1~2 workers are enough for the operation of the complete plant. Less labor works, less cost, so that largely enlarged your pure profit.

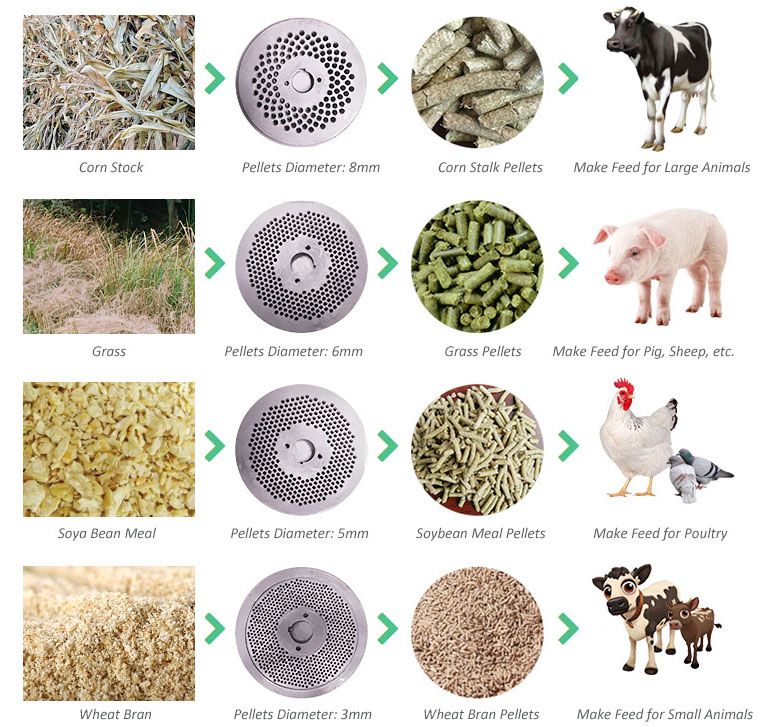

• Wide Application: Suitable for making feed pellets for different livestock, poultry animals.

• Poultry / Animal Feed Pellet Making Process

  Firstly, the feedstuff raw materials or feed ingredients such as soybean meal and maize will go through the crushing machine and be crushed into fine powder. Then, in the mixing equipment, the powder can be mixed with other materials such as vitamin, microelement, meal, bone, wheat bran etc. After mixing, they will become complete feed mesh. Then, the feed mesh will be sent to the animal feed pellet machine and be extruded into uniform pellets with desired diameter and length. After screening and cooling, the poultry feed pellets can be packed directly.

•

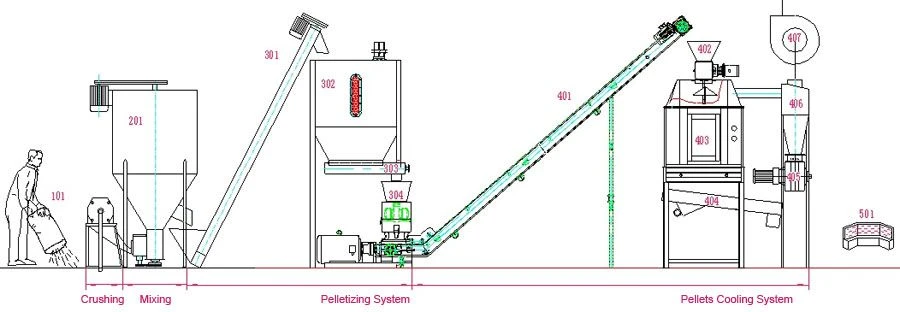

• As shown in the Figure 1, the maize and soya bean meal (store & directly feed on ground) is sucked into the Grinding Machine ¹⁰¹ and crushed into fine powder. Any other powder/soft materials, such as wheat bran, bone meal, microelement, vitamin, etc, which don’t need to be crushed, they can directly feed into the Vertical Mixing Machine ²⁰¹ from its feeding port. All materials are mixed uniformly and discharged into the hopper of Screw Conveyor ³⁰¹ then feed into Temporary Storage Silo ³⁰² by screw conveyor. By Screw Feeder ³⁰³, the mixed materials are uniformly and continuously feed into the animal feed pellet machine ³⁰⁴ then produced into feed pellets. The pellets are discharged into the hopper of Belt Conveyor ⁴⁰¹ then feed into the Pellet Cooling Machine ⁴⁰³ through Air Lock ⁴⁰². With the cooling process, the fresh & hot pellets are cooled, the pellet temperature is not more 5℃ than the room temperature. The cooled animal feed pellets are screened by the Vibrating Screen ⁴⁰⁴, then they can be packaged.
• STLP Series poultry feed pellet making machine assembly unit is widely applied to small to medium scale of feed pellet production plant. If you are planning to set up a mini plant for making your own animal feed pellets on farm or start a small feed pellets manufacturing business, this small plant should be your best choice!
